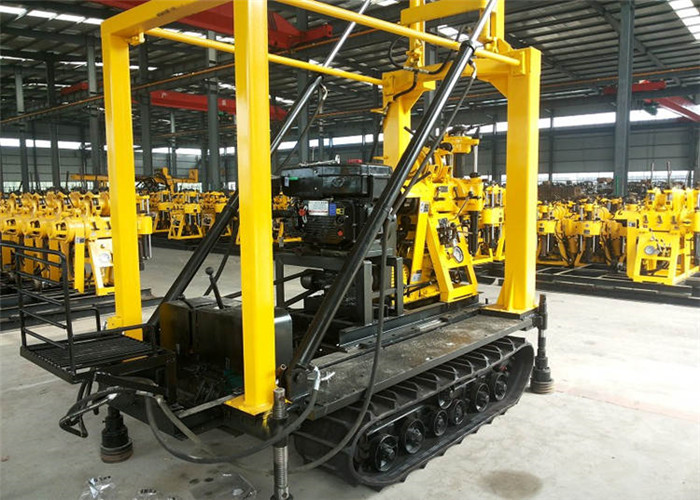

30-100 Meter Diesel Mining Drill Rig , Small Core Drilling Machine
Product description of Mining drill rig
2. A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.
3. Handle concentration, easy operation.
4. It is compact.The drill, water pump and diesel engine are installed on the same base, which occupies a small area.
5. It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains
technical parameter of drilling rig
| Drilling depth | 200m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75° |
| Drill weight (without power) | 975kg |
| Triangle convert belt | B950 x 4 B1700 x 3 |
| The main machine moving distance | 300mm |
| Power | Diesel engine 22KW /Electric motor 15kw |
| Spindle | |
| spindle speed | 64, 128, 287, 557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.lifting capacity | 2400kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s |
| Wire rope caliber | 13mm |
| Wire rope length | 35m |
| Reel diameter | 140mm |
| Hug floodgate caliber | 260mm |
| Hug floodgate belt width | 70mm |
|
|
